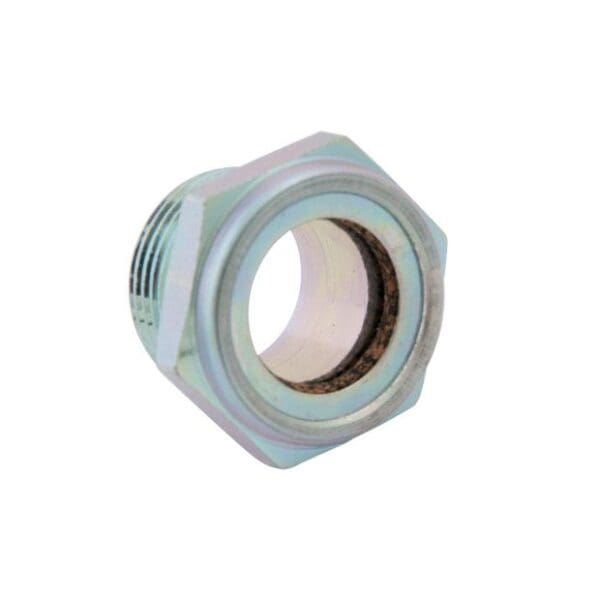

BW-10 Porthole with Open Back

Designed for multiple use, these gauges are made for insertion in tapped els, tees or other NPT fittings and are easily installed and removed with a wrench. Turned from solid hexagon rod, this rugged unit comes factory assembled with clear glass window firmly held between two gaskets by rolled edge of body. Recommended maximum pressures listed for styles BW-10 and BW-20 allow safe margins for variations in application and installation.

Product Options

Available Options

 SKUA (in.)B (in.)C (in.)D (in.)E (in.)Pressure PSI
040403/8-181/211/3215/32175
040411/2-1417/327/1637/641-1/475
040423/4-1417/327/163/41-1/250
040431~11-1/211/161/211-13/1625
040441-1/4~11-1/211/161/21-9/322-1/410
040462-11 1/211/161/223-1/82.5
