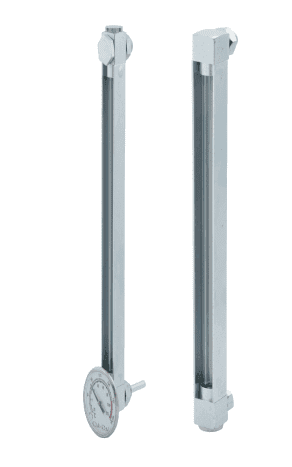

Column View Gauges with or without Thermometer

Fluid level and temperature of liquids in reservoirs can be checked instantly with Gits column view gauges. Designed to mount flush against the outside surface of liquid storage vessels, these gauges are used for applications such as tanks, reservoirs, packaged hydraulic equipment, steel mill pumps, and hydraulic presses. The liquid reaches the sight glass through the lower hollow mounting bolt. Large oil passages yield a quick level response. MOUNTING-On open tanks with drilled holes, use back mounted gauges fastened from the inside with nuts provided for the 1/2-20 mounting studs. On closed tanks where wall thickness permits tapping, use front mounted gauges installed from the outside by means of 1/2-20 hexagonal head mounting bolts provided. THERMOMETERS-One-inch dial (0 – 220 F) is standard. The sensing element is fully protected and extends into the tank for accurate temperature indication. MATERIAL AND OPERATING CONDITIONS-Metal parts are steel protected by zinc plate. O-ring seals are Buna N standard, with Viton A, or Ethylene Propylene available by special order. Sight is gauge glass. Maximum pressure is 125 P.S.I. for gauges up to 36 inches. Maximum temperature is 220 F.

Column View Gauges – Series 15500 w/ Thermometer

Product Options

Available Options

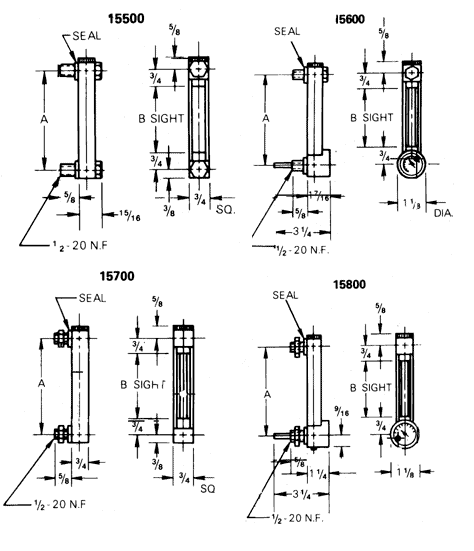

 SKUA. Mounting Centers in.B. Sight Openings in.
1550442-1/2
1550553-1/2
1550664-1/2
1550886-1/2
1550997-1/2
15511119-1/2
1560331-1/2
1560442-1/2
1560553-1/2
1560664-1/2
1560775-1/2
1560886-1/2
1560997-1/2
15610108-1/2
-119-1/2
156121210-1/2
1570331-1/2
1570442-1/2
1570664-1/2
1570775-1/2
1570886-1/2
1570997-1/2
15710108-1/2
15711119-1/2
157121210-1/2
1580331-1/2
1580442-1/2
1580553-1/2
1580664-1/2
1580775-1/2
1580886-1/2
15810108-1/2
158121210-1/2
