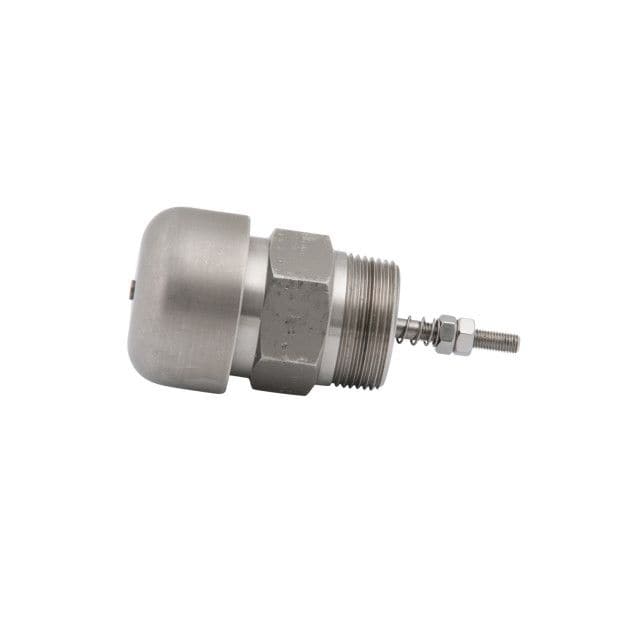

Style 1655 1 1/4″ Pressure/Vacuum Relief Vents

Relief vents are designed to protect storage tanks from over pressure and allow product discharge without manually opening a cover. Patented designs incorporate a unique seal that allows the tank to maintain a positive pressure below the set pressure thereby protecting the tank contents from contamination. The vacuum relief feature is designed to increase discharge rate and prevent tanks from deforming under negative tank pressures. These units were originally designed to provide accurate pressure in portable chemical storage tanks, but can be used in a wide variety of applications.

Product Options

Available Options

 SKUMaterialO Ring MaterialPressure (PSI)Vacuum (PSI)
1655-1258xx316 Stainless SteelViton, Buna, PTFE, EPDM0.25-35 PSI0.25, 0.5, 0.75, 1.0
