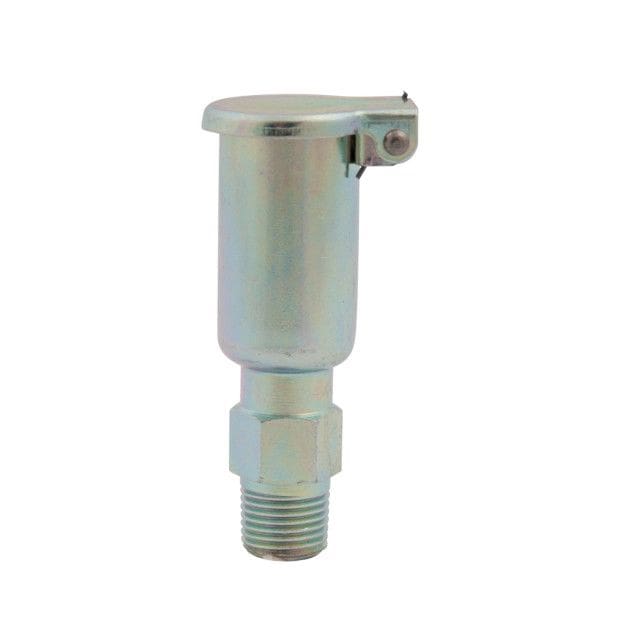

Style WC Brazed Wick Feed

Style WC oil cups are made by adding a standpipe and wicking to Style C oilers (See Gravity Feed Oil Cups). Especially recommended for above-the bearing applications, GITS Wick Feed oil cups have extremely sturdy construction and long life at low cost.

Style WC – Steel, Trivalent Zinc Plating

Product Options

Available Options

SKUA (in.)B (in.)C (in.)D (in.)Capacity in OZWick Reorder #
021021/8-27 NPT3/821-7/323/323078-22
021031/8-27 NPT11/322-5/321-7/165/323078-21
021063/8-18 NPT3/83-1/322-7/161-1/23078-18
021051/4-18 NPT3/82-15/3225/83078-3
021081/4-18 NPT7/163-1/23-3/164-7/8451-1
021161/8-18 NPT3/82-13/3225/83078-20
